ESRI ArcGIS Web Map Integration

The ESRI ArcGIS integration allows you to add an element to a form and enter a public web map identification number to integrate the map on the form. There is no setup needed on the Integrations page, to use the integration you will only need to add the ESRI ArcGIS Web Map element to a form.

Instructions

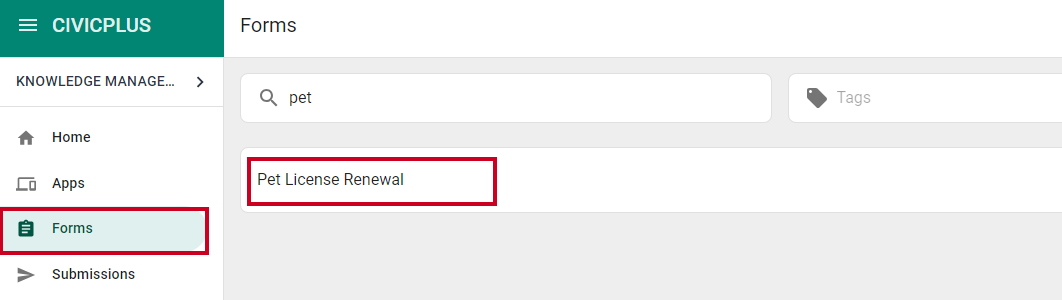

1. Navigate to the Forms tab and select your desired form or create a new form

2. Navigate to the Builder tab

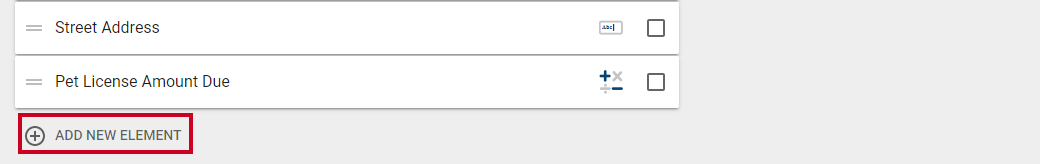

3. Click Add New Element

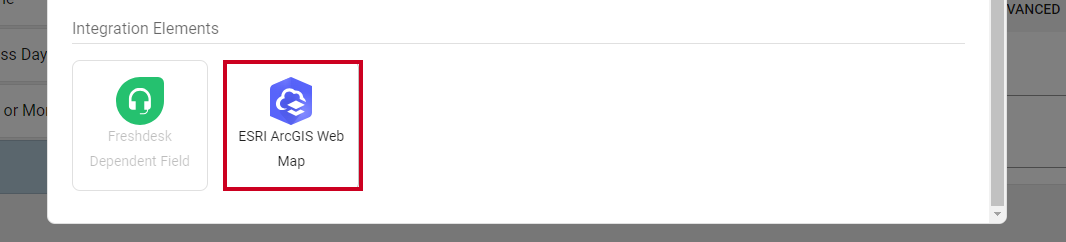

4. Scroll down and select the ESRI ArcGIS Web Map element

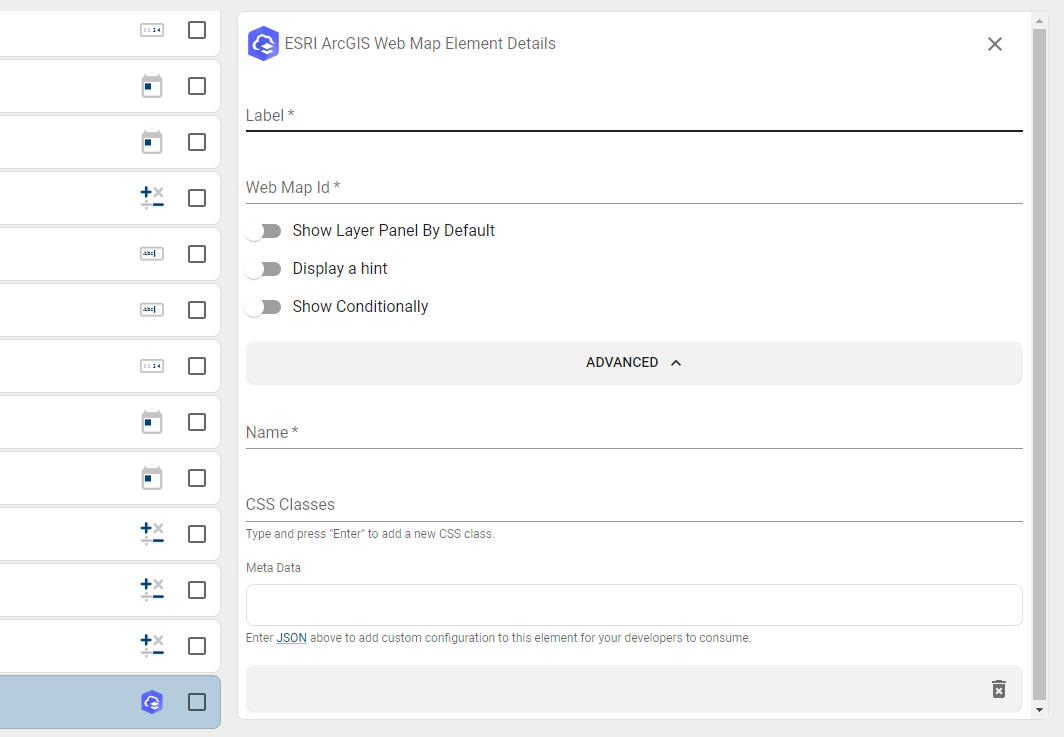

5. Fill out the element details

   • Label: Add a name for the element
   • Web Map ID: Enter the public web map identification number. This can be found after the "id" in the map URL.

   • Show Layer Panel By Default: Enable to show a layer panel for the map
   • Display a hint: Add a hint to allow the label to have more instructions. You can choose to have the hint displayed as a tooltip or below the element label.
   • Show Conditionally: This option is used when you want the element to only be shown under a certain condition
   • Advanced:
     • Name: This is what the element will be named when submitting data (not visible to users)
     • CSS Classes: Add CSS classes to the element
     • Meta Data: Enter JSON above to add custom configuration to this element for your developers to consume

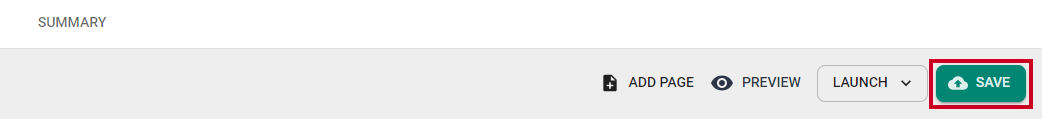

6. Click Save

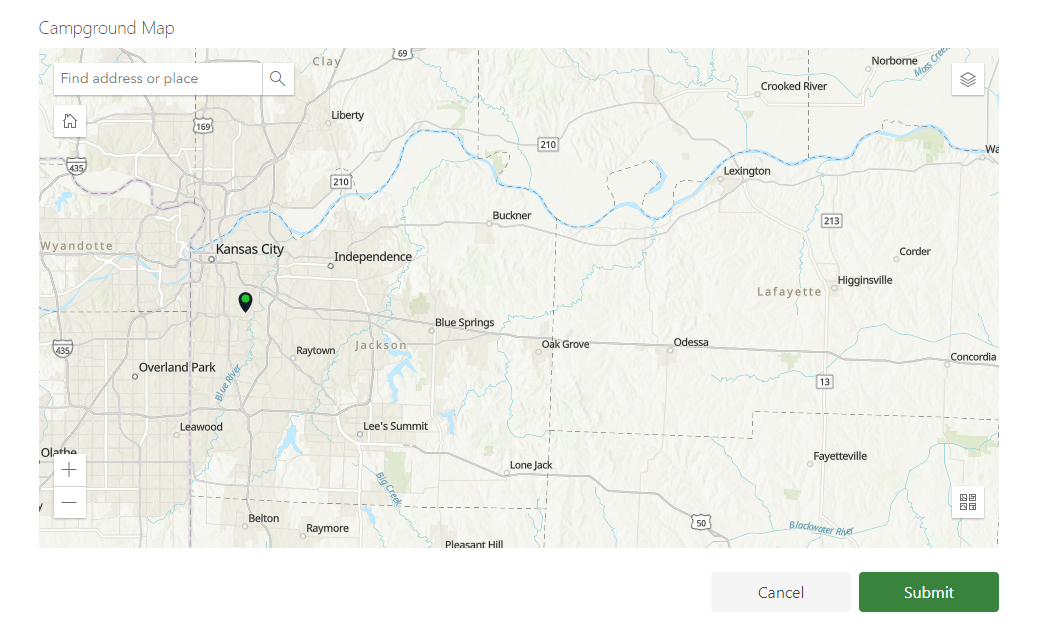

7. Your map will now show on the form


Resources

• ArcGIS Map Integration Using Integration Hub
